ODM Surface Charged Corrugated PTC Air heater 88mm in width

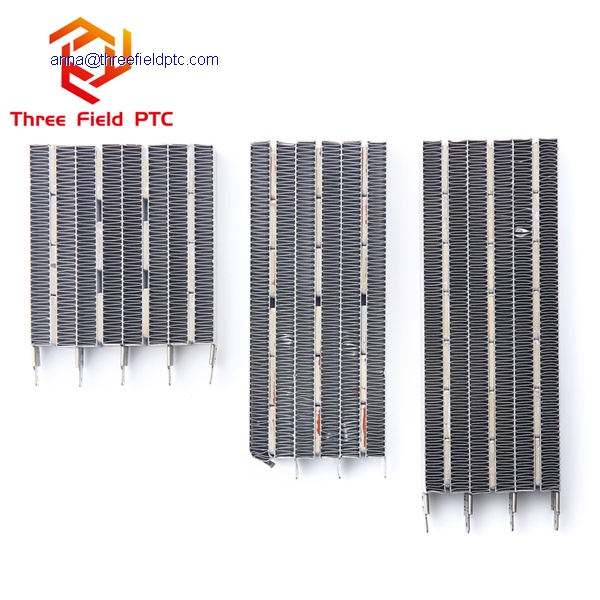

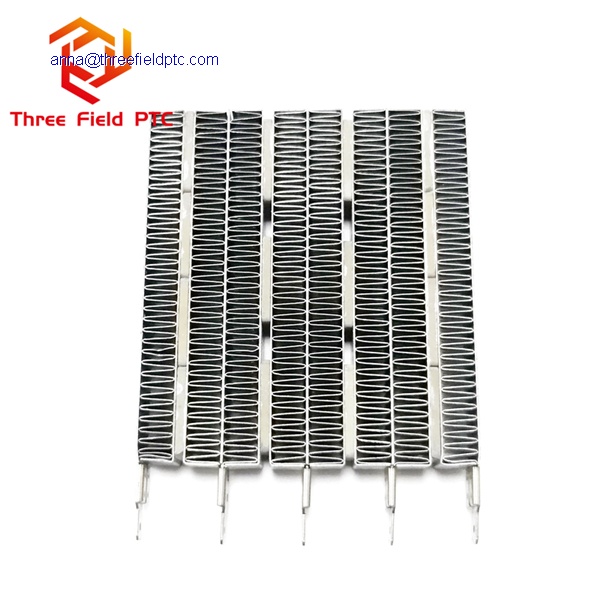

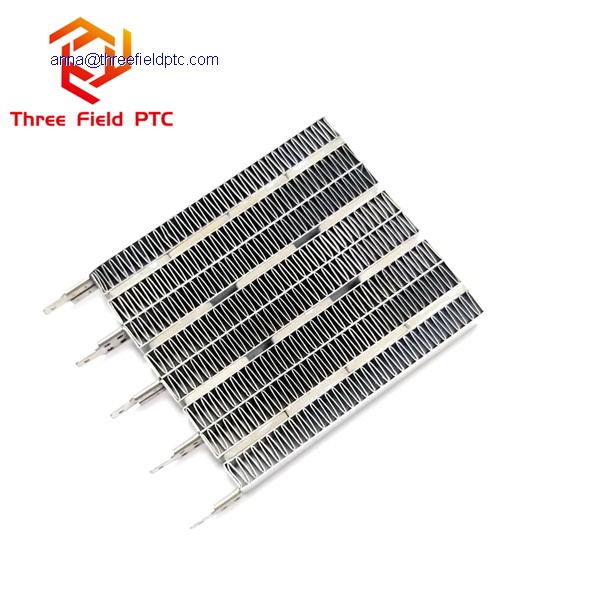

  • Product No.:SY-SCR-88-220V-2000W
  • Dimension:96*88*15mm
  • Material:PTC thermistor, aluminium strip
  • Voltage:220V, can be customized
  • Power:2000W, can be customized
  • Current:9.1A
  • Resistance:Up to the power of heater
  • Insulation:Surface charged
  • Quality Warranty:5 years
  • Net Weight:Up to the length of heater
  • Package:Bubble bag and paper box
  • Online Inquiry

1. Overview

What’s a surface charged corrugated PTC heater?

In the field of PTC heater, the most widely used and cost-effective heater should be the surface charged corrugated heater series. It perfectly replaces the traditional electric heating wire heating. This surface charged corrugated heater has a very huge market, and the market demand is growing at a rate of more than 10% every year.

Conductive corrugated PTC heater is a kind of high-power PTC heater. Corrugated radiator is pasted on both sides of common PTC element, and corrugated hole can supply hot air. PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air. The large surface area of the aluminium fins ensures a homogeneous heat transfer adjusting the air volume flow.


2. Specifications of PTC surface charged PTC heater.
Below is the paramaters of PTC heating element for thickness 15mm

No L*W*T (mm) Customizable Voltage Range Related Power Customizable power range
1 48*88*15 100~240V 800W 50~900W
2 72*88*15 100~240V 1200W 50~1350W
3 96*88*15 100~240V 1600W 100~2400W
4 120*88*15 100~240V 2000W 100~3000W
5 144*88*15 100~240V 2400W 100~3600W
6 168*88*15 100~240V 2800W 100~4200W
7 192*88*15 100~240V 3200W 100~4800W
8 216*88*15 100~240V 3600W 100~4800W
9 240*88*15 100~240V 4000W 100~6000W

Below is the paremeters for thickness to be 24mm.
No L*W*T (mm) Customizable Voltage Range Related Power Customizable power range
10 30*88*24 100~240V 600W 50~800W
11 45*88*24 100~240V 900W 100~1200W
12 60*88*24 100~240V 1200W 100~1600W
13 75*88*24 100~240V 1500W 100~2000W
14 90*88*24 100~240V 1800W 100~2400W
15 105*88*24 100~240V 2100W 100~2800W
16 120*88*24 100~240V 2400W 100~3200W
17 135*88*24 100~240V 2700W 100~3600W
18 150*88*24 100~240V 3000W 100~4000W
19 165*88*24 100~240V 3300W 100~4400W
20 180*88*24 100~240V 3600W 100~4800W
21 195*88*24 100~240V 3900W 100~5200W
22 210*88*24 100~240V 4200W 100~5600W
23 225*88*24 100~240V 4500W 100~6000W
24 240*88*24 100~240V 4800W 100~6400W
25 255*88*24 100~240V 5100W 100~6800W
26 270*88*24 100~240V 5400W 100~7200W

More details about the specifications.

Item

Description

Material

PTC thermistors and aluminium strips, joined with soldering and gluing.

Dimension

Check the dimension sketch map and specification. For the same width of PTC heater, the length can be customized.

Rated voltage

Can be customized, the range please check the specification.

Rated power

Can be customized, the range please check the specification.

Withstanding Voltage

The withstanding voltage test will input 2 times of related voltage to the PTC heater for a minute.

Inrush current

It is about 1.5-2 times of related current when power on for about 10-15 seconds.

Power supply

AC electricity

Assembly mode

Reserve 5 pcs of 250 terminal, can set up to be 3 gears of power or even more.

It is plug-and-play. The other options include making outgoing fire resistance wires or making a frame of heat resistant plastic.

We have engineer team who can help client to design how to assemble the PTC heater to the finished heater.

Wires

Usually use fire resistance wire or Teflon wire.

Wires length

Can be customized according to client’s need

Surface charged

Yes. We also have surface uncharged models.

PTC thermistors surface

This model we don’t deal with its surface. Can make PTC thermistors been covered with a layer of thick dropped glue, so it is better on dust-proof and moisture-proof. The cost increasing is about us$0.08/pc.

Temperature

The highest temperature of the heater body is 280℃, the highest temperature of the heated air is 130℃. It doesn’t have light fire.

Temperature control

This heater doesn’t have temperature limiter.

For safety consideration, we can add it to the PTC heater, the PTC heater need a plastic frame to fix the sensor.

Package

Bubble bag, can be customized


3
. The features of surface charged corrugated heater series.


3.1 Its price is not expensive compared with the whole heater. It is an economical heater style.

3.2 Easy installation, plug-and-play, fast temperature increase

3.3 No oxygenation and open flame, secure and comfortable use. Quiet operation, and do not generate RFI noise.

3.4 It has a virtually unlimited service life, the service life is up to 100,000 hours.

3.5 Automatic adjustment to maintain balanced and continuously heating. When the temperature is too high, it will automatically reduce the power, reduce the heating and keep the temperature constant. High operational reliability and energy efficiency without any additional switching elements.

3.6 Product size, voltage, power, temperature and other parameters can be customized.


4. The possible applications of surface charged PTC heaters.

Due to its own features, the surface charged PTC heater are most commonly used as pre- or post-heaters in air conditioning. As it is surface charged, it mainly been used in relative dry and clean environment And it should be well isolated with conductive objects. The most common usage is home use air heater and clothes dryer, or industry dryer.

5. Our company’s advantages in this industry.

5.1 We have an experienced engineer technical team, which can design different types of heaters according to customer needs. The design content includes product frame, wiring mode, ceramic chip formula, power, temperature control, etc.

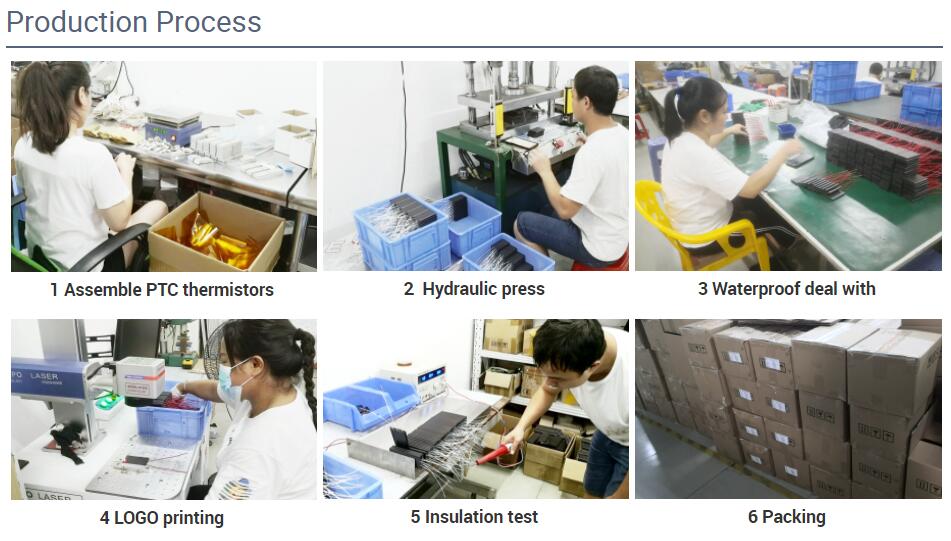

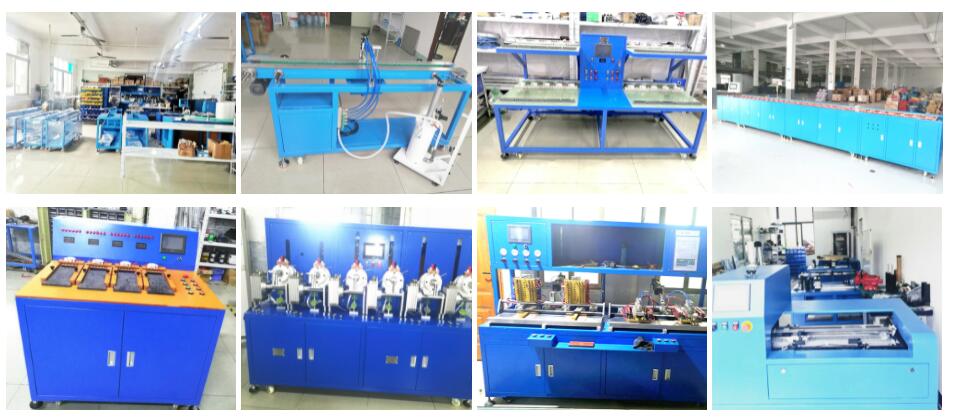

5.2 Our company has rich relevant production equipment, such as glue dropping print machines, glue rolling print machines, terminal adding machines, power on curing machines, power testing machines, etc. These equipment ensure the production capacity and technical level of our company. 100% of our products accepted some testing before shipment, such as insulation test (optional), power test, high voltage resistance test, etc.

5.3 We have equipment design and production capacity, can develop new equipment for different products according to customer requirements. We can improve the production efficiency and share economic benefits with our customers.
