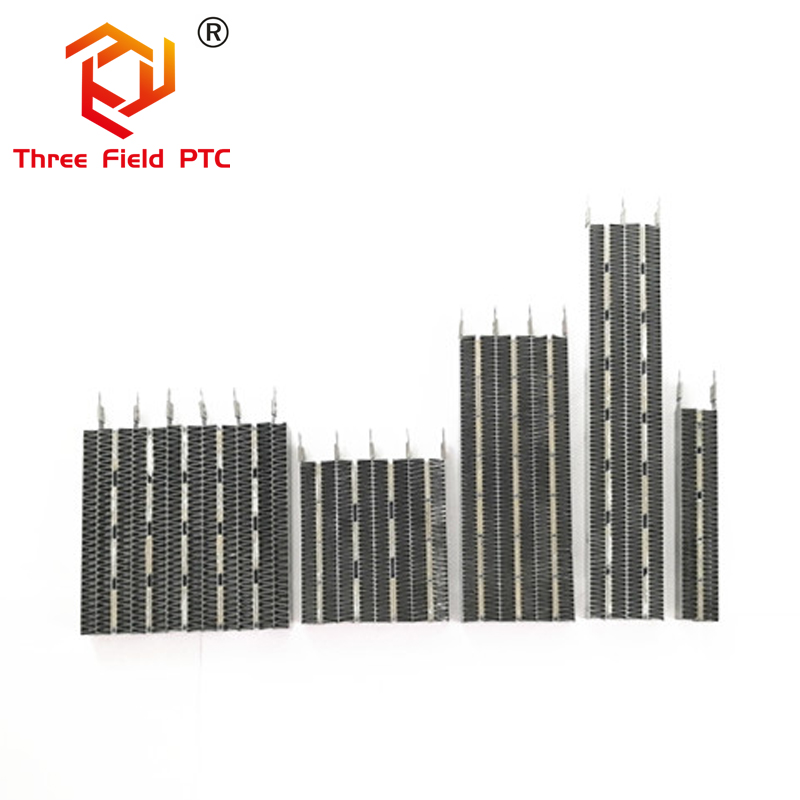

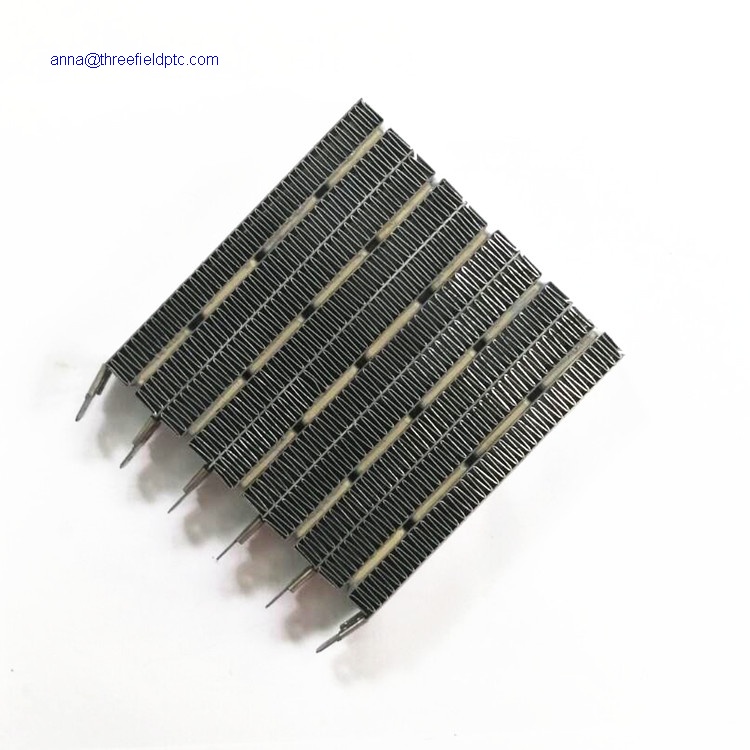

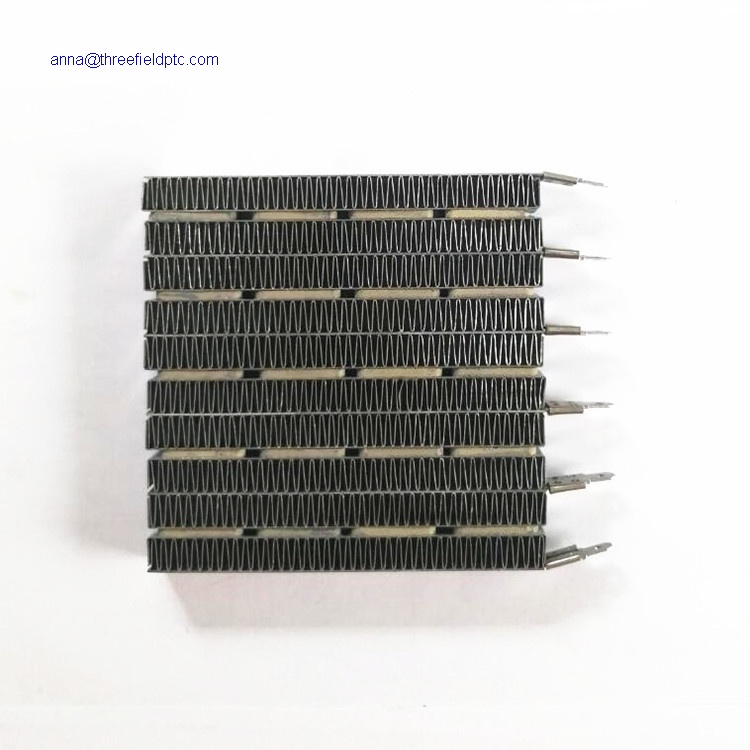

ODM Surface Charged Corrugated PTC heater 110mm wide for air heater ODM Surface Charged Corrugated PTC heater 110mm wide for air heater ODM Surface Charged Corrugated PTC heater 110mm wide for air heater ODM Surface Charged Corrugated PTC heater 110mm wide for air heater

ODM Surface Charged Corrugated PTC heater 110mm wide for air heater

  • Product No.:SY-SCR-110-220V-2500W
  • Dimension:110*110*15mm
  • Material:PTC thermistor, aluminium strip
  • Voltage:220V, it can be customized
  • Power:2500W, can be customized
  • Current:11.36
  • Resistance:/
  • Insulation:Surface charged
  • Quality Warranty:5 years
  • Net Weight:/
  • Package:Bubble bag and paper box
  • Online Inquiry

1, Overview

What’s a surface charged corrugated PTC heater?

In the field of PTC heater, the most widely used and cost-effective heater should be the surface charged corrugated heater series. It perfectly replaces the traditional electric heating wire heating. This surface charged corrugated heater has a very huge market, and the market demand is growing at a rate of more than 10% every year.

Conductive corrugated PTC heater is a kind of high-power PTC heater. Corrugated radiator is pasted on both sides of common PTC element, and corrugated hole can supply hot air. PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air. The large surface area of the aluminium fins ensures a homogeneous heat transfer adjusting the air volume flow.


2. Specifications of PTC surface charged PTC heater
Below chart are the paramaters of PTC heating element items in 15mm thickness.

No L*W*T (mm) Customizable Voltage Range Related Power Customizable power range
1 72*110*15 100240V 1500W 1002250W
2 96*110*15 100240V 2000W 1003000W
3 120*110*15 100240V 2500W 1003750W
4 144*110*15 100240V 3000W 1004500W
5 168*110*15 100240V 3500W 1005250W
6 192*110*15 100240V 4000W 1006000W
7 216*110*15 100240V 4500W 1006750W
8 240*110*15 100240V 5000W 1007500W
9 264*110*15 100240V 5500W 1008250W

Below are the paremeters for items in 24mm thicknes s.
No L*W*T (mm) Customizable Voltage Range Related Power Customizable power
range
10 30*110*24 100240V 750W 1001000W
11 45*110*24 100240V 1125W 1001500W
12 60*110*24 100240V 1500W 1002000W
13 75*110*24 100240V 1875W 1002500W
14 90*110*24 100240V 2250W 1003000W
15 105*110*24 100240V 2625W 1003500W
16 120*110*24 100240V 3000W 1004000W
17 135*110*24 100240V 3375W 1004500W
18 150*110*24 100240V 3750W 1005000W
19 165*110*24 100240V 4125W 1005500W
20 180*110*24 100240V 4500W 1006000W
21 195*110*24 100240V 4875W 1006500W
22 210*110*24 100240V 5250W 1007000W
23 225*110*24 100240V 5625W 1007500W
24 240*110*24 100240V 6000W 1008000W
25 255*110*24 100240V 6375W 1008500W
26 270*110*24 100240V 6750W 1009000W

More details about the ripple PTC heating element in 110mm width.

Item

Description

Material

PTC thermistors and aluminium strips, joined with soldering and gluing.

Dimension

Check the dimension sketch map and specification. For the same width of PTC heater, the length can be customized.

Rated voltage

Can be customized, the range please check the specification.

Rated power

Can be customized, the range please check the specification.

Withstanding Voltage

The withstanding voltage test will input 2 times of related voltage to the PTC heater for a minute.

Inrush current

It is about 1.5-2 times of related current when power on for about 10-15 seconds.

Power supply

AC electricity

Assembly mode

Reserve 6 pcs of 250 terminal, can set up to output 3 gears of power or even more.

It is plug-and-play. The other options include making outgoing fire resistance wires or making a frame of heat resistant plastic.

We have engineer team who can help client to design how to assemble the PTC heater to the finished heater.

Wires

Usually use fire resistance wire or Teflon wire.

Wires length

Can be customized according to client’s need

Surface charged

Yes. We also have surface uncharged models.

PTC thermistors surface

This model we don’t deal with its surface. Can make PTC thermistors been covered with a layer of thick dropped glue, so it is better on dust-proof and moisture-proof. The cost increasing is about us$0.08/pc.

Temperature

The highest temperature of the heater body is 280℃, the highest temperature of the heated air is 130℃. It doesn’t have light fire.

Temperature control

This heater doesn’t have temperature limiter.
For safety consideration, we can add it to the PTC heater, the PTC heater need a plastic frame to fix the sensor.

Package

Bubble bag, can be customized


3. The features of surface charged corrugated heater series.


3.1 Its price is not expensive compared with the whole heater. It is an economical heater style.

3.2 Easy installation, plug-and-play, fast temperature increase

3.3 No oxygenation and open flame, secure and comfortable use. Quiet operation, and do not generate RFI noise.

3.4 It has a virtually unlimited service life, the service life is up to 100,000 hours.

3.5 Automatic adjustment to maintain balanced and continuously heating. When the temperature is too high, it will automatically reduce the power, reduce the heating and keep the temperature constant. High operational reliability and energy efficiency without any additional switching elements.

3.6 Product size, voltage, power, temperature and other parameters can be customized.


4. The possible applications of surface charged PTC heaters

Due to its own features, the surface charged PTC heater are most commonly used as pre- or post-heaters in air conditioning. As it is surface charged, it mainly been used in relative dry and clean environment And it should be well isolated with conductive objects. The most common usage is home use air heater and clothes dryer, or industry dryer.

5. Our company’s advantages in this industry:

5.1 We have an experienced engineer technical team, which can design different types of heaters according to customer needs. The design content includes product frame, wiring mode, ceramic chip formula, power, temperature control, etc.

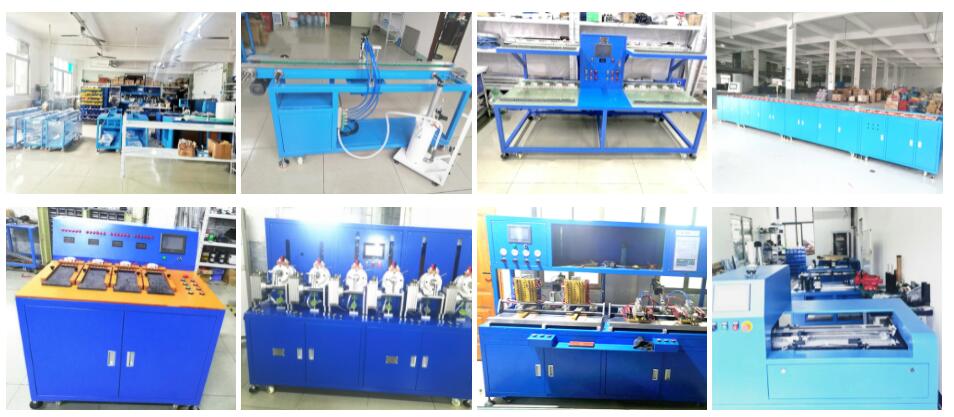

5.2 Our company has rich relevant production equipment, such as glue dropping print machines, glue rolling print machines, terminal adding machines, power on curing machines, power testing machines, etc. These equipment ensure the production capacity and technical level of our company. 100% of our products accepted some testing before shipment, such as insulation test (optional), power test, high voltage resistance test, etc.

5.3 We have equipment design and production capacity, can develop new equipment for different products according to customer requirements. We can improve the production efficiency and share economic benefits with our customers.
